Vehicle Applications
→ Ford F-150 Double Cab | 2018-2024 (B&O Amplified)
→ Installation Time
Introduction
The following instructions will guide you through the installation process to replace the Speakers in the factory locations and add amplifiers and a subwoofer to your Ford.
TIP Before you begin, review these instructions thoroughly and ensure that all parts are present and tools are available.
WARNING Metra Electronics does not assume any responsibility for damage resulting from incorrect installation.
→ Parts List
Number | Component | Quantity |
1 | Vibe 1” Tweeters | 2 |
2 | Vibe 6 ½” Speakers | 1 |
3 | Vibe 6x9” Speakers | 1 |
4 | 10” Subwoofer /w Enclosure | 1 |
5 | Vibe 4-ch Amp | 2 |
6 | F-150 Amp Board | 1 |
7 | Tweeter Adapter Plate (82-5605) | 1 |
8 | 6x9 Adapter Plate (82-5606) | 1 |
9 | Speaker Harness (72-5602) | 2 |
10 | Speaker Harness (72-5603) | 1 |
11 | Speaker Adapter Ring (IBSBF65) | 1 |
12 | Speaker Adapter Ring (IBSBF69) | 1 |
13 | AXDSPX-A2B2 | 1 |
14 | LD-CAP-SP | 1 |
15 | LD-VB-FDA2B-F | 1 |
16 | LD-VB-FD3A2B-F | 1 |
17 | LD-VB-A2BEXT | 1 |
18 | LD-VB-ETHOUT | 1 |
19 | LD-19AMP-KT | 1 |
→ Required Tools
- 7mm, 10mm, 18mm
- Phillips Driver
- T20 Torx
- Panel Tool
- Uni Bit (Step Bit)
- Wire Cutters
- Wire Strippers
- Wire Fishing Tool
(IMAGES NEEDED) A-Pillar Tweeters Installation
Follow the instructions below to install the A-Pillar Tweeters.
A-Pillar Removal

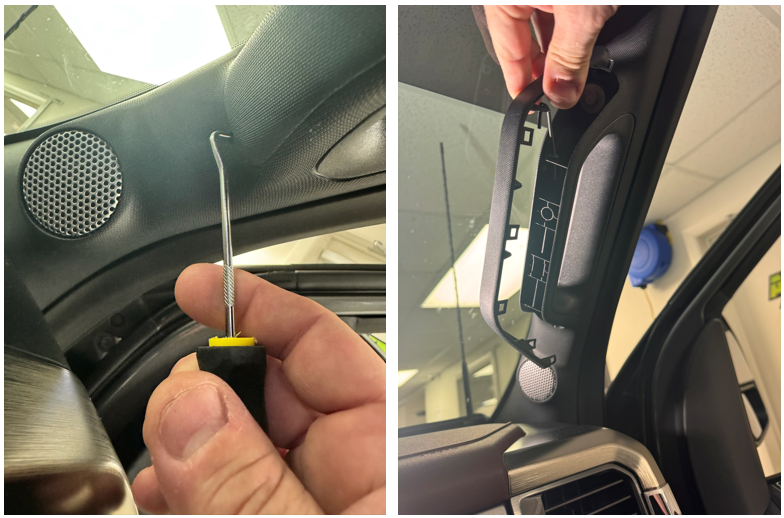

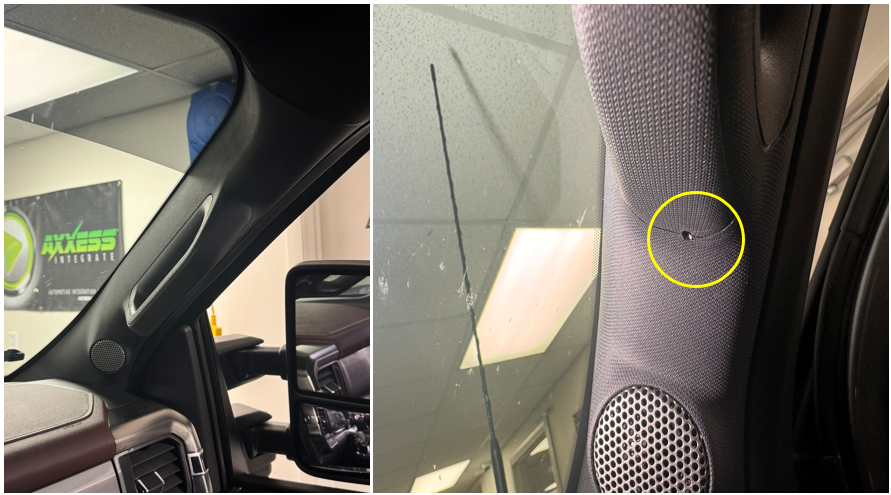

- Using a pick tool and a panel tool, remove the cover from the handle on the A-pillar.
NOTE There is a small hole at the base of the handle that you can use the pick tool to lift the piece up and get the panel tool inserted to remove the panel.
- Remove the two (2) 10mm bolts from the handle.

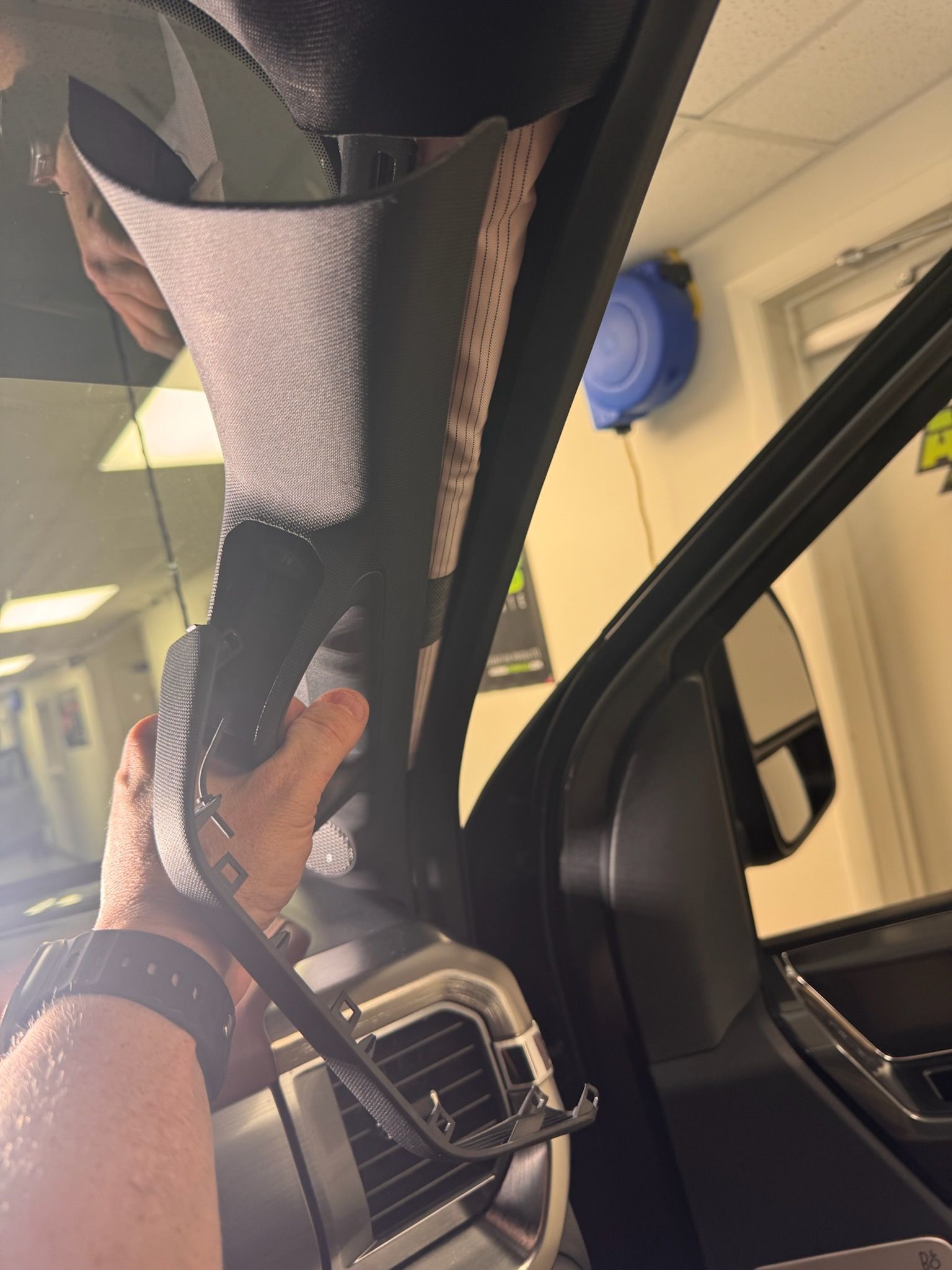

- With the bolts removed, pull the handle of the trim away from the A-pillar.

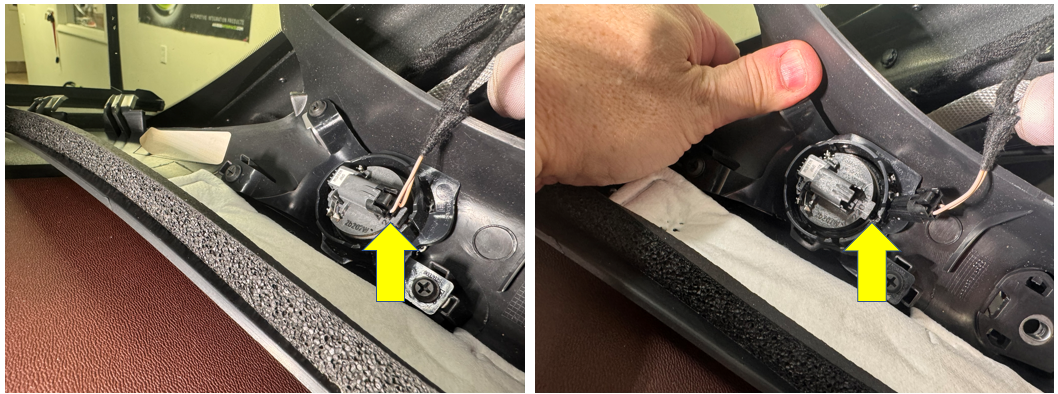

- Unplug the speaker harness from the tweeter.
Tweeter Installation
- With a Phillips screwdriver, remove the three (3) screws securing the factory tweeter in place on the panel, and remove the factory tweeter.

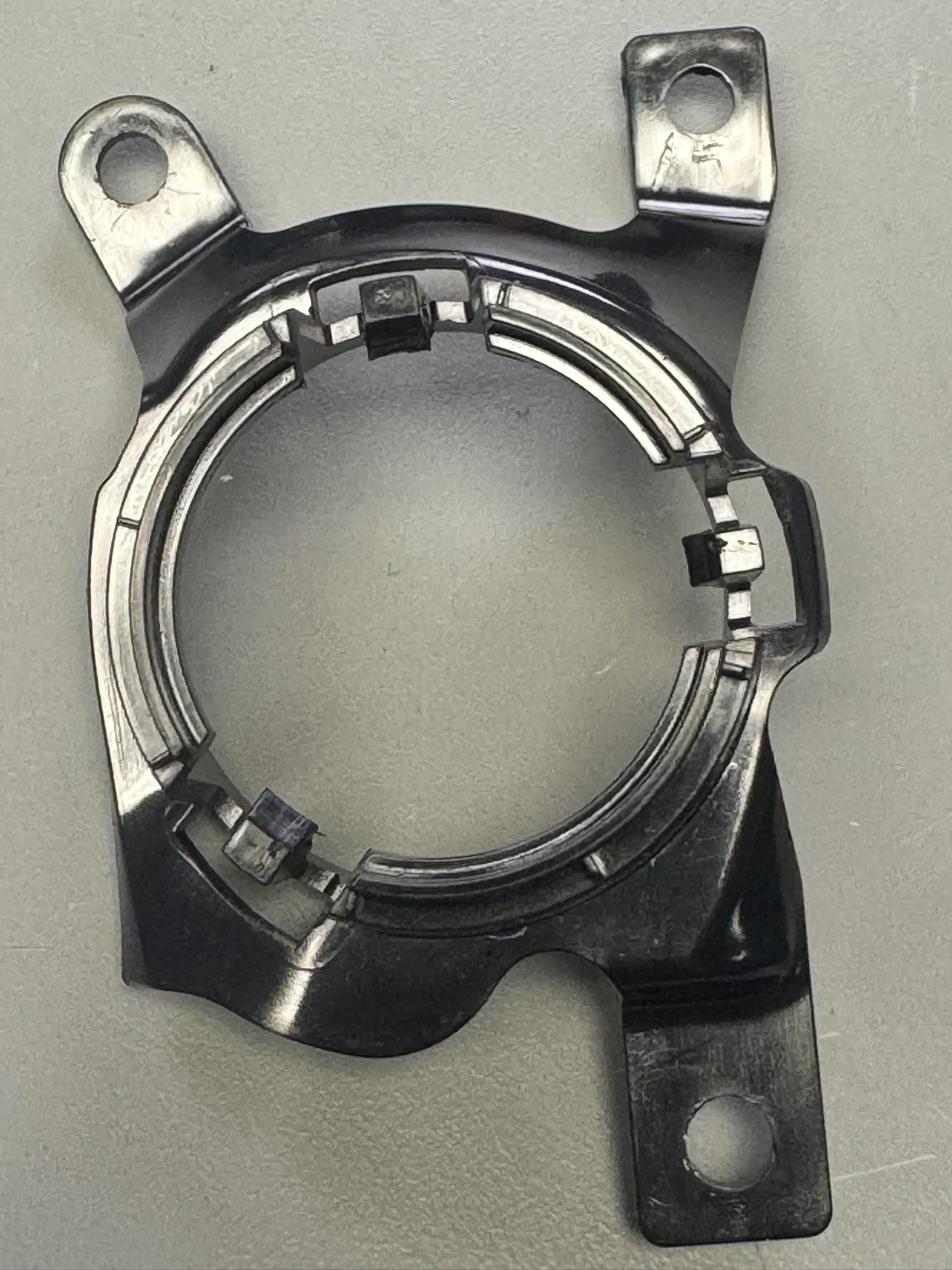

- Release the factory tweeter from the factory mount by using a pick tool to release the (3) clips holding the tweeter.

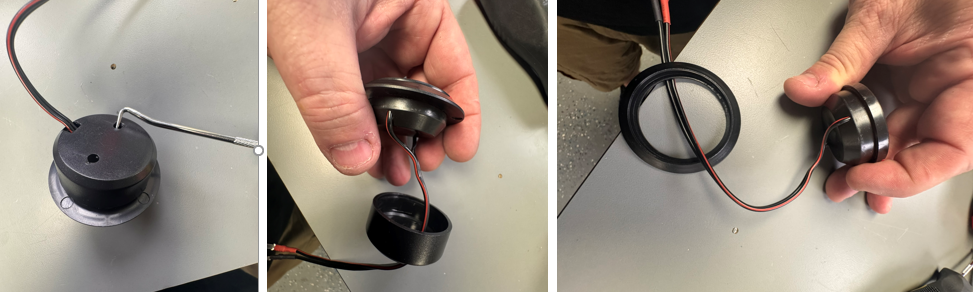

- Remove the cup from the back of the Vibe tweeter, and then remove the trim ring from the tweeter.
- Insert the Vibe tweeter into the factory tweeter mount.
